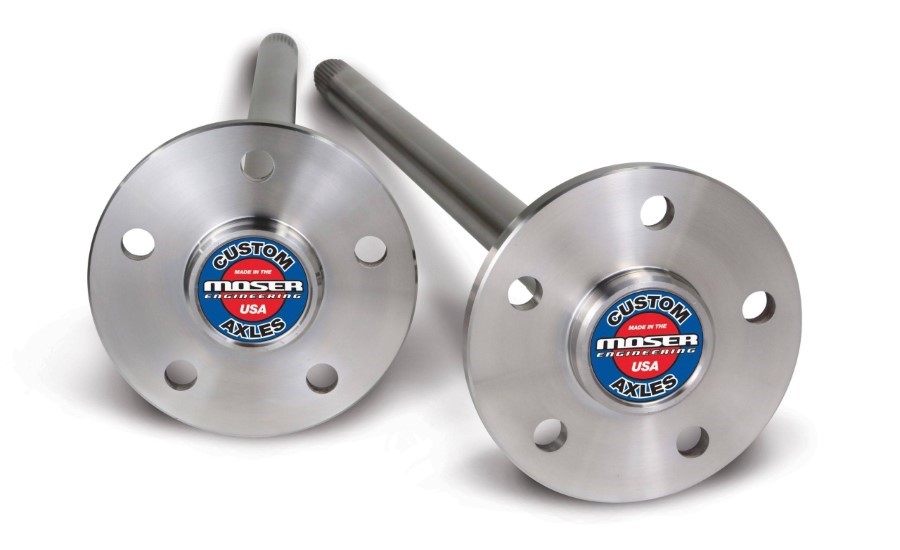

Moser Engineering Custom Length C-Clip 33 Spline Axles (1-PAIR) C33CST
Moser Custom C-Clip Axles are without question the best in the business. We begin with premium quality “MADE IN THE USA” Alloy Steel that is forged right here in Portland, Indiana just blocks from our manufacturing facility using Moser designed tooling, induction heat-treated to optimize torsional strength, and 100% magnafluxed. This process not only gives the axle added strength (20-30% over the OEM Axles) but makes it ideal for street use as well. The axles are specifically designed and engineered to take the stress and strain of high performance street uses. Our axles are available in any spline count and can be made to fit virtually any rear end setup. All popular bearing sizes and bolt pattern combinations are available.
These forged steel street axles are non-tapered, with hardened & ground bearing seats and machined c-clip grooves.
SKU:
MOSEC33CSTBrand:
100% original guarantee
Return within 30 days
Free delivery on all orders
| Brand | Moser Engineering |
| TYPE OF REAR END | 14 Bolt 9.5" GM, 10-Bolt 8.5" & 8.6" GM Truck |
| BEARING SEAT DIAMETER ("H") | 1.618" |
| DRIVER SIDE "C" (OVERALL AXLE LENGTH, FACE OF AXLE FLANGE TO END OF AXLE) | Driver Side "C" Measurement |
| PASSENGER SIDE"C" (OVERALL AXLE LENGTH, FACE OF AXLE FLANGE TO END OF AXLE) | Passenger Side "C" Measurement |
| HUB PILOT ("A") | Hub Pilot "A" Measurement |
| BOLT PATTERN | 5 x 4 1/2" (Ford & Mopar), 5 x 4 3/4" (Chevy), 5 x 5" (Chevy & Ford), 5 x 5 1/2" (Ford), 6 x 5 1/2" (Chevy), 5 x 4" (Mopar), 5 x 135mm (Ford), 4 x 4 1/4" (Ford), 4 x 4 1/2" |
| STUD TYPE (Does not include Studs, Studs must be ordered separately) | 1/2" Screw-In, 5/8" Screw-In, .480" Knurl (Press-In), .505" Knurl (Press-In), .620" Knurl (Press-In), .685" Knurl (Press-In) |
| 2ND BOLT PATTERN (IF NECESSARY) | None, 5 x 4 1/2" (Ford, Mopar), 5 x 4 3/4" (Chevy), 5 x 5" (Chevy, Ford), 5 x 5 1/2" (Ford), 6 x 5 1/2" (Chevy), 5 x 4" (Mopar), 5 x 135mm (Ford), 4 x 4 1/4" (Ford), 4 x 4 1/2" |
| 2ND BOLT PATTERN STUD TYPE (Does not include Studs, Studs must be ordered separately) | None, 1/2" Screw-In, 5/8" Screw-In, .480" Knurl (Press-In), .505" Knurl (Press-In), .620" Knurl (Press-In), .685" Knurl (Press-In) |
| AXLE FLANGE DIAMETER ("J") | Axle Flange Diameter "J" Measurement |
| ADDITIONAL OPTIONS | None, GM Truck ABS Prep |
| Shipping Details: | |
| Weight: | 4.44 lb |
| Length: | 1.0 in |
| Height: | 1.0 in |
| Width: | 1.0 in |
