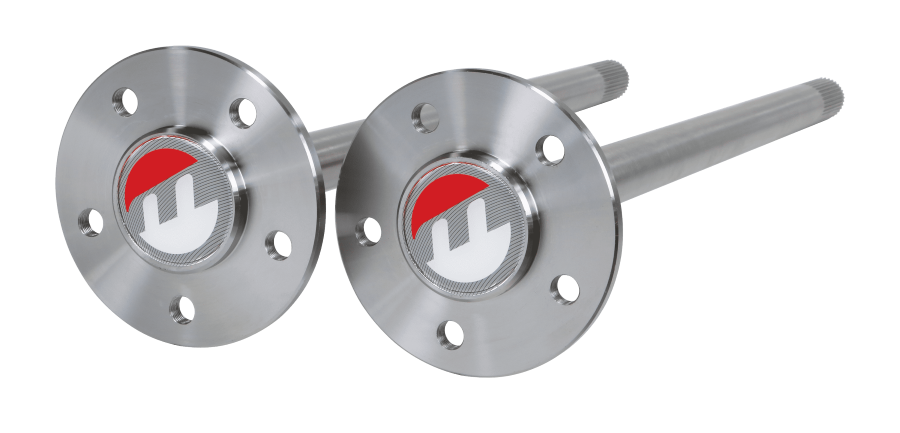

Moser Engineering Custom Length Alloy 35 Spline Axles (1-PAIR) A35CST

• Brand

  •

• TYPE OF REAR END

  • 9" Ford
  • 8.8" Ford
  • 12-Bolt Chevy
  • 8 3/4" Mopar
  • Dana-60

• TYPE OF HOUSING END (Measure Bolt Pattern of Housing End Carefully!):

  Big Ford Big Ford New Style (Torino) Small Ford GM - 10/12 Bolt Chevy (3.150" Bearing) Flush Mount GM - 10/12 Bolt Chevy (3.150" Bearing) Large GM (3.150" Bearing) 8.75 Mopar / Dana 60 Olds / Pontiac (3.150" Bearing) Lamb / Symmetrical (3.150" Bearing) 8.25 & 9.25 Mopar Other

• DRIVER SIDE "C" (OVERALL AXLE LENGTH, FACE OF AXLE FLANGE TO END OF AXLE)

  • Driver Side "C" Measurement

• PASSENGER SIDE"C" (OVERALL AXLE LENGTH, FACE OF AXLE FLANGE TO END OF AXLE)

  • Passenger Side "C" Measurement

• DRIVER SIDE "K"

  • Driver Side "K" Measurement

• PASSENGER SIDE"K"

  • Passenger Side "K" Measurement

• HUB PILOT ("A")

  • Hub Pilot "A" Measurement

• BOLT PATTERN

  5 x 4 1/2" (Ford & Mopar) 5 x 4 3/4" (Chevy) 5 x 5" (Chevy & Ford) 5 x 5 1/2" (Ford) 6 x 5 1/2" (Chevy) 5 x 4" (Mopar) 5 x 135mm (Ford) 4 x 4 1/4" (Ford) 4 x 4 1/2"

• STUD TYPE (Does not include Studs, Studs must be ordered separately)

  1/2" Screw-In 5/8" Screw-In .480" Knurl (Press-In) .505" Knurl (Press-In) .625" Knurl (Press-In) .685" Knurl (Press-In)

• 2ND BOLT PATTERN (IF NECESSARY)

  None 5 x 4 1/2" (Ford, Mopar) + CA$ 48.60 5 x 4 3/4" (Chevy) + CA$ 48.60 5 x 5" (Chevy, Ford) + CA$ 48.60 5 x 5 1/2" (Ford) + CA$ 48.60 6 x 5 1/2" (Chevy) + CA$ 48.60 5 x 4" (Mopar) + CA$ 48.60 5 x 135mm (Ford) + CA$ 48.60 4 x 4 1/4" (Ford) + CA$ 48.60 4 x 4 1/2" + CA$ 48.60

• 2ND BOLT PATTERN STUD TYPE (Does not include Studs, Studs must be ordered separately)

  None 1/2" Screw-In 5/8" Screw-In .480" Knurl (Press-In) .505" Knurl (Press-In) .625" Knurl (Press-In) .685" Knurl (Press-In)

• AXLE FLANGE DIAMETER ("J")

  • Axle Flange Diameter "J" Measurement

• AXLE FLANGE TO BEARING SEAT DIMENSION ("B") (Measured with bearing removed)

  • Axle Flange to Bearing Seat "B" Measurement

• BEARING SEAT DIAMETER ("H")

  • 1.533"
  • 1.565"

• TYPE OF BRAKES AND/OR MANUFACTURES PART NUMBER

  • Type of Brakes and/or Manufactures part number

• TYPE OF DIFFERENTIAL AND/OR MANUFACTURE

  • Type of Differential and/or Manufacture

• AXLE FLANGE TO AXLE FLANGE ("D")

  • Axle Flange to Axle Flange "D" Measurement

• HOUSING END TO HOUSING END ("E")

  • Housing End to Housing End "E" Measurement

• DRIVER SIDE HOUSING END TO PINION CENTER ("F") (DO NOT measure through the tubes)

  • Driver Side Housing End to Pinion Center "F" Measurement

• PASSENGER SIDE HOUSING END TO PINION CENTER ("G") (DO NOT measure through the tubes)

  • Passenger Side Housing End to Pinion Center "G" Measurement

• SERVICE/LIGHTENING OPTIONS

  • None
  • Access Holes + CA$ 34.71
  • Lightening Holes + CA$ 83.31
  • Pro Flange - Profiled/Pocket Milled (*Adds an additional day to manufacturing) + CA$ 97.20
  • Gun-Drilling (3/4" Hole) (*Adds an additional day to manufacturing) + CA$ 166.62
  • Pro-Flange & Gun-Drilling(*Adds an additional day to manufacturing) + CA$ 263.82

• BEARING, STUD & RETAINER PACKAGE

  • None
  • Bearing, Stud & Retainer Package + CA$ 173.57
